Wing flap cove cutouts around flap tracks

Post by dlords »

Would anyone be able to take a picture of there wing T/E with the flaps down. We are in the process of modifying a set of cessna birddog wings for our 170B project. We had to remove the birddog flap tracks and install 170-172 style, and I don't know how big to make the cut out in the flap cove skin to allow for the upper roller to pass through.
Thanks
Doug Lords
52 Cessna 170B
dalords@cableone.net
Top
User avatar
n2582d
Posts: 3013
Joined: Mon Apr 29, 2002 4:58 am

Flap bracket pictures

Post by n2582d »

Doug,

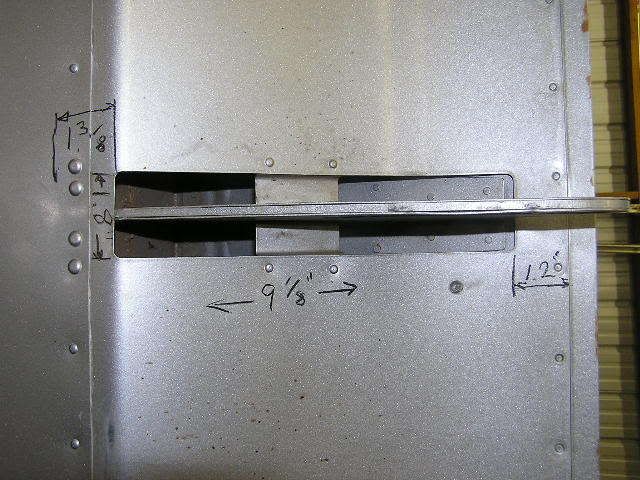

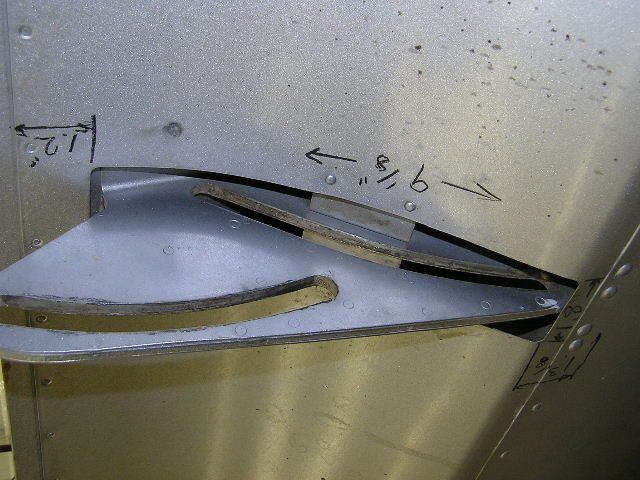

Here are a couple of pictures. Let me know if you need any dimensions not shown. The 1 3/8" is to the forward edge of the skin which is lapped under the bottom wing skin.

Gary
Top
dlords
Posts: 27
Joined: Wed Jan 04, 2006 3:58 pm

thanks for the pic's

Post by dlords »

Thanks for the pic's and the dimesions Gary that helped out greatly and got us back on our way to putting the wings back together
